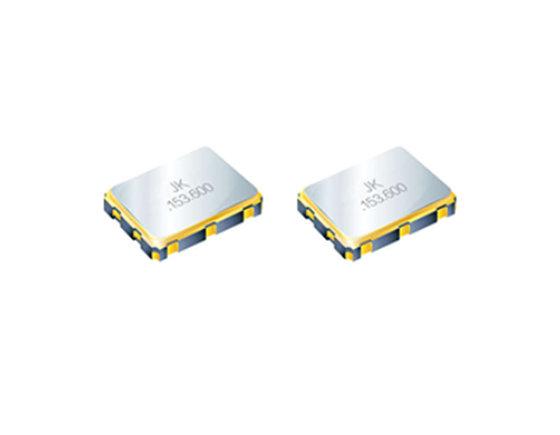

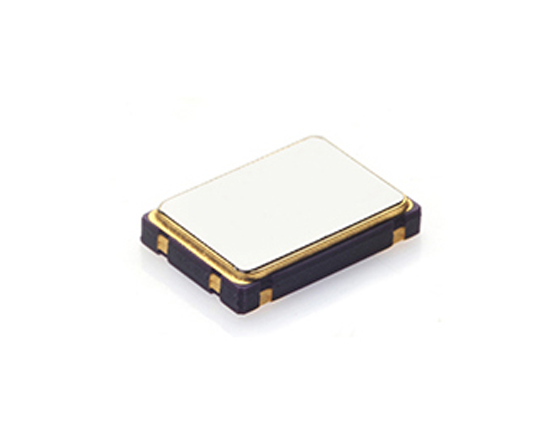

石英晶体振荡器OSC3225
特点
|
型号type |
OSC 3225 |
Unit |
||
|
工作电压Supply Voltage Variation(VDD) |
3.3 |
2.5 |
1.8 |
V |
|
VDD±10% |
V |
|||
|
频率范围Frequency Range |
0.032768,1.25～125 |
MHz |
||
|
工作温度范围Operating Temp.Range |
-20～70/-40～85 |
℃ |
||
|
频率稳定性Frequency Stability |
±20~±50 |
ppm |
||
|
输出负载Output Load |
15 |
FF |
||
|
输入电流Supply Curent |
||||
| 32.768KHz |
70 Max |
66 Max |
63 Max |
μA |
| 1.25MHz～100MHz |
15 Max |
10 Max |
7Max |
|
| 100MHz～125MHz |
25 Max |
20 Max |
12 Max |
mA |
|
上升下降时间Rise/Fal | Time |
||||
| 32.768KHz |
50 Max |
50 Max |
50 Max |
nSec |
| 1.25MHz～19.99MHz |
4 Max |
4 Max |
5 Max |
|
| 20MHz～79.99MHz |
3 Max |
3 Max |
4Max |
|
| 80MHz～125MHz |
3 Max |
3 Max |
4Max |
|
|
占空比Duty Cycle |
45～55 |
% |
||
|
启动时间Start Time |
2 Max |
mSec |
||
|
输出水平Out Level |
||||
| Output Hiaht(Logic 1) |
90%VDD Min |
V |
||
| Output Hight(Logic 0) |
10%VDD Max |
|||
|
三态输出Tri-State |
||||
| Enable (High vdtage or flbating) |
0.7VDD Min |
V |
||
| Disable (Low voltage or GND） |
0.3VDD Max |
|||
|
待机电流Standby Current |
10 |
μA |
||
|
贮存温度Storage Temperature Range |
-55～125 |
℃ |
||
