型 号 Type |

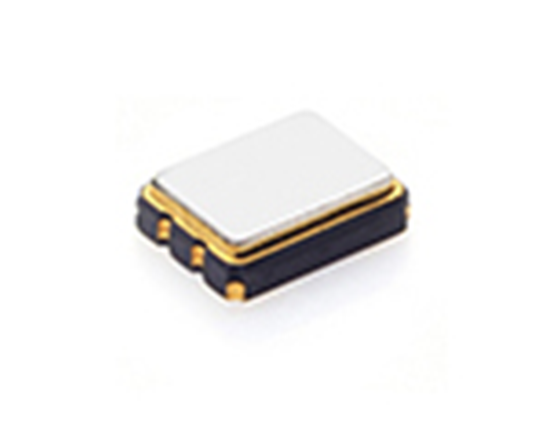

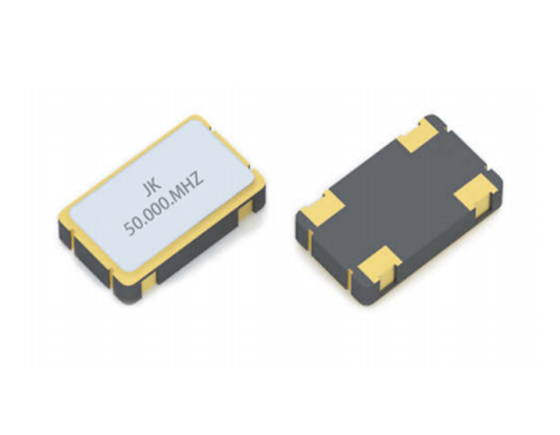

TCXO 3225 |
|
|
频率范围Frequency Range |
13～52MHz |
|
|
输出类型Output Type |
Clipped Sinewave |
|
|
输出负载Output Load |
10KQ//10 pF |
|
|
振荡模式Oscillation Mode |
Fundamenta |
|
|
供电电压Supply Voltage |
1.8~3.3V |
|
|
输出电压Clipped Sinewave Output Voltage |
0.8Vp-ptypical |
|
|
频率稳定性Frequency Stability |
Vs.Temperature(-30～+85°C) |
±0.5/±2.0 ppm |
|
Vs. Load(Load varies± 10%) |
± 0.2 ppm Max |
|
|
Vs.Supply Voltage(Vcc=Typical±0.1V) |
± 0.2 ppm Max. |
|
|
频率容限Frequency Tolerance |
at 25°C atter 2 Reflows with Typical Applied to Auto Frequency Control Pin |
± 2.5 ppm Max. |
|
频率漂移Slope of Frequency Drift |
±0.1 ppm/°C Typical;±0.5ppm/°CMax. |
|
|
储存温度范围Storage Temperature Range |
-40～+85°C |
|
|
自动频率控制范围Auto Frequency Control(AFC)Range |
±7- ±16ppm(1.4±1V) |
|
|
电源电流Supply Current |
2.0mAMax. |
|
|
启动时间Start-up Time |
5ms Max. |
|
|
谐波Harmonics |
-5 dBc Max. |
|
|
相位噪声Phase Noise at 1 kHz offset |
-130dBc/Hz |
|
|
年老化Aging(at25°C) |
±1ppm/year Max. |
|
