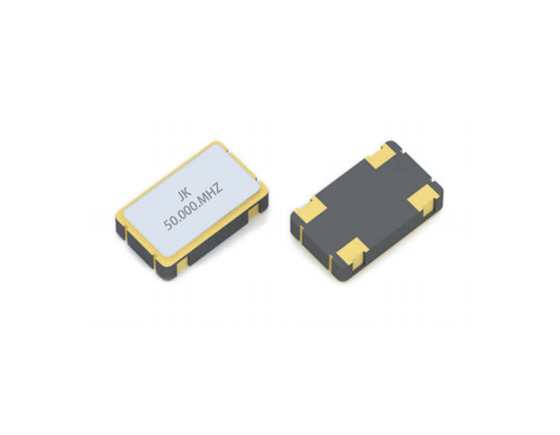

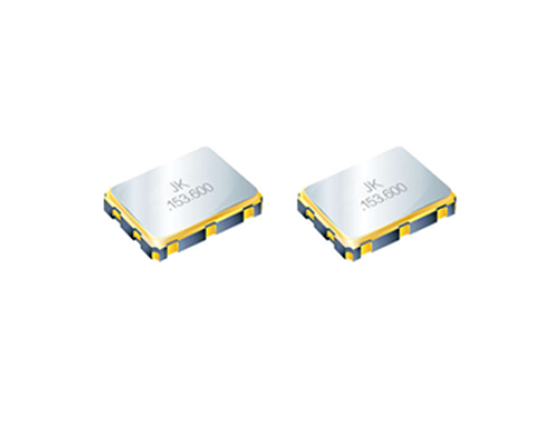

Quartz crystal oscillator OSC7050
特点
|
Type |
OSC 7050 |
Unit |
||
|
Supply Voltage Variation(VDD) |
3.3 |
2.5 |
1.8 |
V |
|
VDD±10% |
V |
|||
|
Frequency Range |
0.0137～160 |
0.0137～133 |
0.0137～125 |
MHz |
|
Operating Temp.Range |
-20～70/-40~85 |
℃ |
||
|
Frequency Stability |
±20~±50 |
ppm |
||
|
Output Load |
15 |
PF |
||
|
Supply Current |
||||
| 13.7KHz～93KHz |
1 Max |
1 Max |
1 Max |
mA |
| 0.3125MHz～39.99MHz |
10 Max |
8 Max |
7Max |
|
| 40MHz～74.99MHz |
20 Max |
18 Max |
15 Max |
|
| 75MHz～134.99MHz |
35 Max |
30 Max |
25 Max |
|
| 135MHz～160MHz |
45 Max |
40 Max |
/ |
|
|
Rise/Fal Time |
||||
| 13.7KHz～93KHz |
50 Max |
50 Max |
50 Max |
nSec |
| 0.3125MHz～99.99MHz |
5 Max |
5 Max |
5 Max |
|
| 100MHz～160MHz |
3 Max |
3 Max |
3 Max |
|
|
Start Time |
5 Max |
nSec |
||
|
Out Leve |
||||
| Output Hight(Logic 1) |
90%VDD Min |
V |
||
| Output Hight(Logic 0) |
10%VDD Max |
|||
|
Tri-State |
||||
| Enable (High voltage or floating) |
0.7VDD Min |
V |
||
| Disable (Low voltage or GND) |
0.3VDD Max |
|||
|
Standby Current |
10 |
μA |
||
|
Storage Temperature Range |
-55～125 |
℃ |
||
